| US Type Shackle--G209 G210 |
| Material: 45# 40Cr |
| Surface :HDG, Electro-Galvanizing |

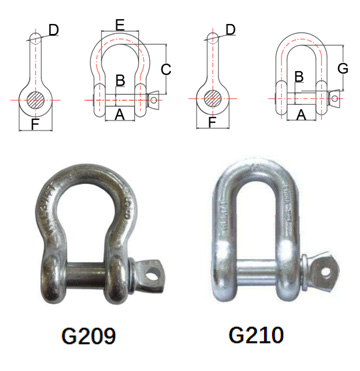

| Size Inch | WLL T | Dimensions/mm | Drawing | ||||||
| A | B | C | D | E | F | G | |||
| 1/4 | 1/2 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 19 |  |
| 5/16 | 3/4 | 13.5 | 9.65 | 31 | 7.85 | 21.3 | 19.1 | 25.4 | |
| 3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 31 | |
| 7/16 | 1-1/2 | 19 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 36 | |
| 1/2 | 2 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 41 | |
| 5/8 | 3-1/4 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 51 | |
| 3/4 | 4-3/4 | 31.8 | 22.4 | 71.5 | 19.1 | 51 | 46 | 60 | |
| 7/8 | 6-1/2 | 36.6 | 25.4 | 84 | 22.4 | 58 | 53 | 71 | |
| 1 | 8-1/2 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 81 | |
| 1-1/8 | 9-1/2 | 46 | 31.8 | 108 | 28.5 | 74 | 68.5 | 91 | |
| 1-1/4 | 12 | 51.5 | 35.1 | 119 | 31.8 | 82.5 | 76 | 100 | |
| 1-3/8 | 13-1/2 | 57 | 38.1 | 133 | 35.1 | 92 | 84 | 111 | |
| 1-1/2 | 17 | 60.5 | 41.4 | 146 | 38.1 | 98.5 | 92 | 124 | |
| 1-3/4 | 25 | 73 | 51 | 178 | 46.7 | 127 | 106 | 146 | |
| 2 | 35 | 82.5 | 57 | 197 | 51 | 146 | 122 | 171 | |
| 2-1/2 | 55 | 104 | 70 | 267 | 69 | 184 | 145 | 203 | |
